UBTech Walker S
Benefits
The Walker S integrates advanced AI and physical mechanisms for robust performance in complex operational environments.
• Fluid and Precise Movements The robot features 41 servo-motorized joints (DOF), enabling fluid and precise movements.
• Advanced Autonomy It uses U-SLAM navigation combined with 3D semantic mapping for advanced autonomous operation.
• High-Level Intelligence It includes an integrated Large Language Model (LLM) for intelligent interaction and decision-making.
• Industrial Synchronization It supports real-time connection to industrial systems for data synchronization.
• Continuous Operation It utilizes a Quick-Swap removable battery.
• Robust Adaptation The robot is built for robust self-balancing and all-terrain adaptation
• Fluid and Precise Movements The robot features 41 servo-motorized joints (DOF), enabling fluid and precise movements.
• Advanced Autonomy It uses U-SLAM navigation combined with 3D semantic mapping for advanced autonomous operation.
• High-Level Intelligence It includes an integrated Large Language Model (LLM) for intelligent interaction and decision-making.
• Industrial Synchronization It supports real-time connection to industrial systems for data synchronization.
• Continuous Operation It utilizes a Quick-Swap removable battery.
• Robust Adaptation The robot is built for robust self-balancing and all-terrain adaptation

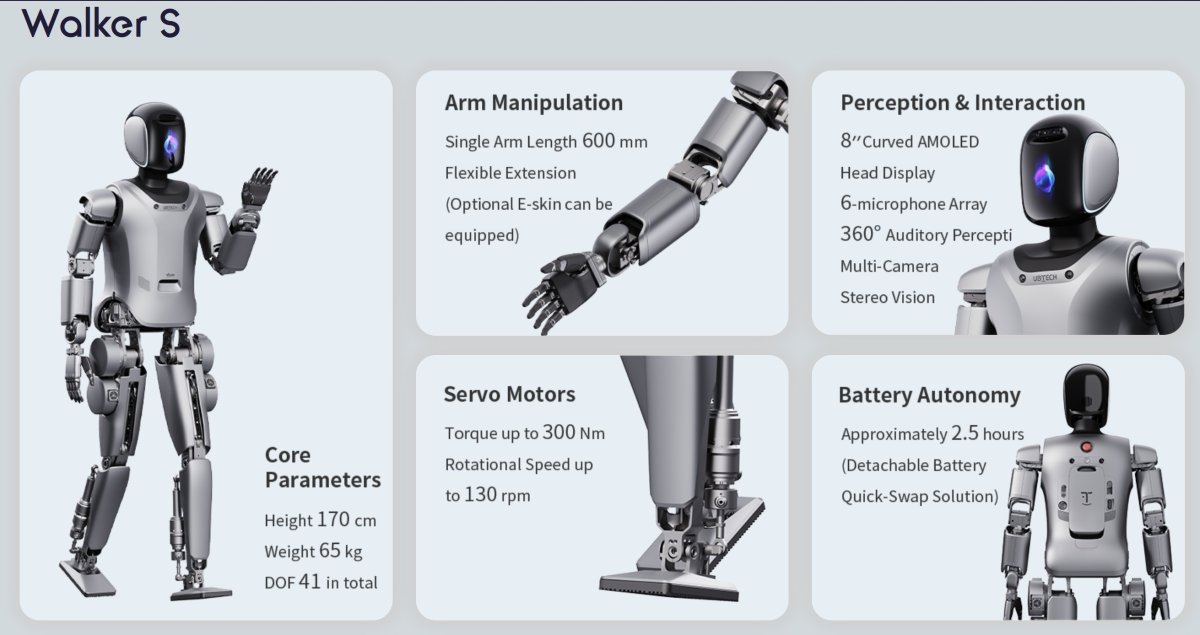

Technical Specifications
Height 170 cm
Net Weight 65 kg
Joints (DOF) 41
Max Motor Torque 300 Nm (130 rpm rotation speed)
Primary Navigation U-SLAM, 3D semantic navigation
Sensors RGBD, ToF, 6D force sensors, 6-mic array
Display 8" curved AMOLED head display
Operating System ROSA 2.0 (AI + LLM)
Battery Type Quick-Swap removable battery
Battery Life (Autonomy) 2.5 hours
Charging Time Approx. 2 hours
Connectivity WiFi/Bluetooth/4G/5G, Cloud & Edge Computing
Net Weight 65 kg
Joints (DOF) 41
Max Motor Torque 300 Nm (130 rpm rotation speed)
Primary Navigation U-SLAM, 3D semantic navigation
Sensors RGBD, ToF, 6D force sensors, 6-mic array
Display 8" curved AMOLED head display
Operating System ROSA 2.0 (AI + LLM)
Battery Type Quick-Swap removable battery
Battery Life (Autonomy) 2.5 hours
Charging Time Approx. 2 hours
Connectivity WiFi/Bluetooth/4G/5G, Cloud & Edge Computing
Applications
The Walker S is optimized to enhance productivity and safety in demanding professional environments.
Industry and production Optimizes productivity through safe, precise operations synchronized on production lines. It is designed to execute complex tasks autonomously.
Reception and informationCapable of welcoming and providing information.
Education and trainingUsed as a platform for education and training programs.
Research and developmentUtilized in research and development environments
Industry and production Optimizes productivity through safe, precise operations synchronized on production lines. It is designed to execute complex tasks autonomously.
Reception and informationCapable of welcoming and providing information.
Education and trainingUsed as a platform for education and training programs.
Research and developmentUtilized in research and development environments
Navigation & Detection
The robot employs sensor fusion and high-fidelity detection systems for environmental understanding.
• Navigation System It utilizes U-SLAM technology combined with 3D semantic navigation.
• Perception Sensors It is equipped with RGBD cameras, ToF sensors, and 6D force sensors.
• Visual/Kinetic Skill It features sophisticated hand-eye coordination with the ability to detect complex objects in 6D.
• Audio Perception It features a 6 microphone array for 360° audio perception.
Performances & Interactions (Performances & Interactions)
The Walker S is a high-performance machine focused on mechanical precision and artificial intelligence.
• Joints and Articulations It has 41 degrees of freedom (DOF).
• Actuators It uses servo-motors with a maximum torque of 300 Nm and a rotation speed of 130 rpm.
• Operating System/AI It runs on ROSA 2.0, which integrates AI and the LLM (Large Language Model).
• Display It has an 8" curved AMOLED head display.
• Arms The arm length is 600 mm (with flexible extension, E-skin option available).
• Control It supports Teleoperation (remote control) and Human-Robot Interaction (HRI)
• Navigation System It utilizes U-SLAM technology combined with 3D semantic navigation.
• Perception Sensors It is equipped with RGBD cameras, ToF sensors, and 6D force sensors.
• Visual/Kinetic Skill It features sophisticated hand-eye coordination with the ability to detect complex objects in 6D.
• Audio Perception It features a 6 microphone array for 360° audio perception.
Performances & Interactions (Performances & Interactions)
The Walker S is a high-performance machine focused on mechanical precision and artificial intelligence.
• Joints and Articulations It has 41 degrees of freedom (DOF).
• Actuators It uses servo-motors with a maximum torque of 300 Nm and a rotation speed of 130 rpm.
• Operating System/AI It runs on ROSA 2.0, which integrates AI and the LLM (Large Language Model).
• Display It has an 8" curved AMOLED head display.
• Arms The arm length is 600 mm (with flexible extension, E-skin option available).
• Control It supports Teleoperation (remote control) and Human-Robot Interaction (HRI)
