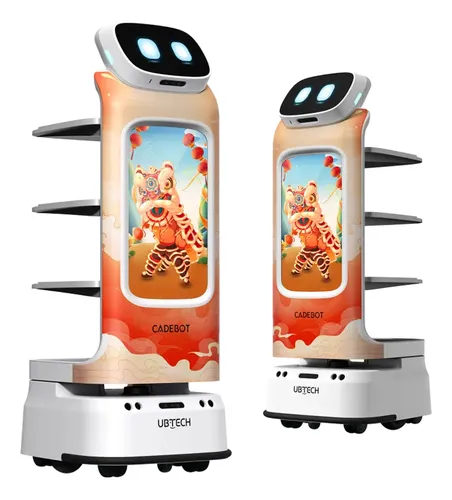

UBTech CADEBOT L100
Benefits
The Cadebot L100 provides versatile capabilities focused on delivery efficiency, stability, and interactive promotion.
• Dual Screen System It features both a 10.1" FHD interactive touchscreen and a large 21.5" Full HD advertising screen, maximizing engagement and promotional display.
• Precision Navigation It uses highly accurate U-SLAM Fusion technology (laser + visual AI) for ultra-precise positioning and autonomous path planning.
• Superior Stability The robot is equipped with automobile-grade independent suspension and dampened wheels, ensuring optimal stability even on irregular or uneven floors.
• High Load Capacity It supports a total payload of up to 40 kg, distributed across its three delivery trays.
• Multi-Table Efficiency It excels at multi-table delivery in a single operation, with optimized route planning to streamline service tasks.
• Advanced Connectivity It offers robust connectivity options including 4G, WiFi (2.4 & 5G), and Lora, facilitating seamless control and management.

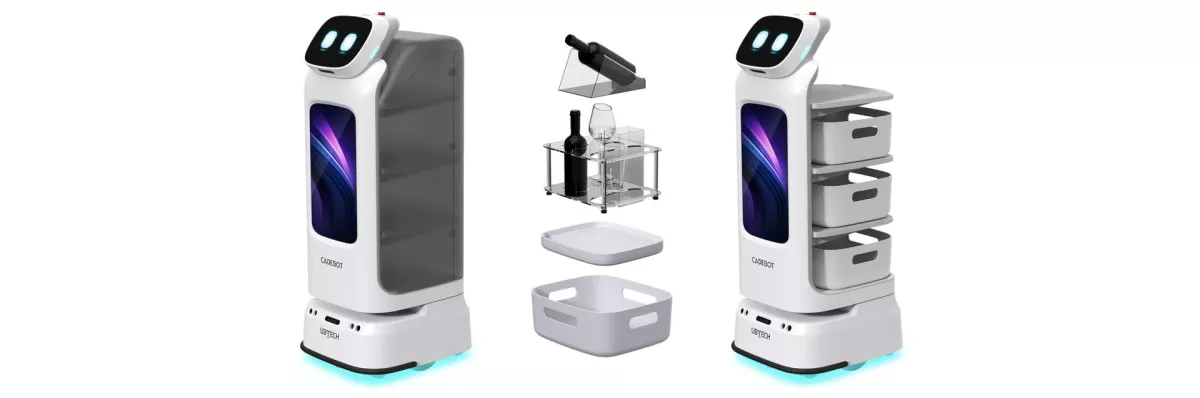

• Modular Design It supports various modular accessories, such as tray returns, glass racks, and dust covers, allowing for scene-specific customization.
• Dual Screen System It features both a 10.1" FHD interactive touchscreen and a large 21.5" Full HD advertising screen, maximizing engagement and promotional display.
• Precision Navigation It uses highly accurate U-SLAM Fusion technology (laser + visual AI) for ultra-precise positioning and autonomous path planning.
• Superior Stability The robot is equipped with automobile-grade independent suspension and dampened wheels, ensuring optimal stability even on irregular or uneven floors.
• High Load Capacity It supports a total payload of up to 40 kg, distributed across its three delivery trays.
• Multi-Table Efficiency It excels at multi-table delivery in a single operation, with optimized route planning to streamline service tasks.
• Advanced Connectivity It offers robust connectivity options including 4G, WiFi (2.4 & 5G), and Lora, facilitating seamless control and management.
• Modular Design It supports various modular accessories, such as tray returns, glass racks, and dust covers, allowing for scene-specific customization.
Performances & Interactions
The Cadebot L100 is built for performance and engaging interaction through visual and auditory channels.
• Display Quality Dual screens offer high-resolution display: a 21.5" FHD (1920x1080) for advertising and a 10.1" FHD (1200x1920) touchscreen for interaction.
• Interaction Features a 6-microphone array for precise voice interaction and customized voice broadcast.
• Load Management Has 3 trays/4 zones, each supporting a load of 10 kg, for a total maximum load of 40 kg. The tray surface area is 38 x 42 cm.
• Autonomy The robot provides 6 hours of continuous work or 12 hours of standby time.
• Charging Supports automatic or station charging, completing a full recharge in approximately 4 hours.
• Display Quality Dual screens offer high-resolution display: a 21.5" FHD (1920x1080) for advertising and a 10.1" FHD (1200x1920) touchscreen for interaction.
• Interaction Features a 6-microphone array for precise voice interaction and customized voice broadcast.
• Load Management Has 3 trays/4 zones, each supporting a load of 10 kg, for a total maximum load of 40 kg. The tray surface area is 38 x 42 cm.
• Autonomy The robot provides 6 hours of continuous work or 12 hours of standby time.
• Charging Supports automatic or station charging, completing a full recharge in approximately 4 hours.
Applications
Restaurants and Hotels
Autonomous Delivery: Optimized for multi-point delivery, enhancing service efficiency.
Offices and Schools
Greeting/Interaction: Provides customized voice interaction and information services via its 6-microphone array.
Hospitals and Shopping Centers

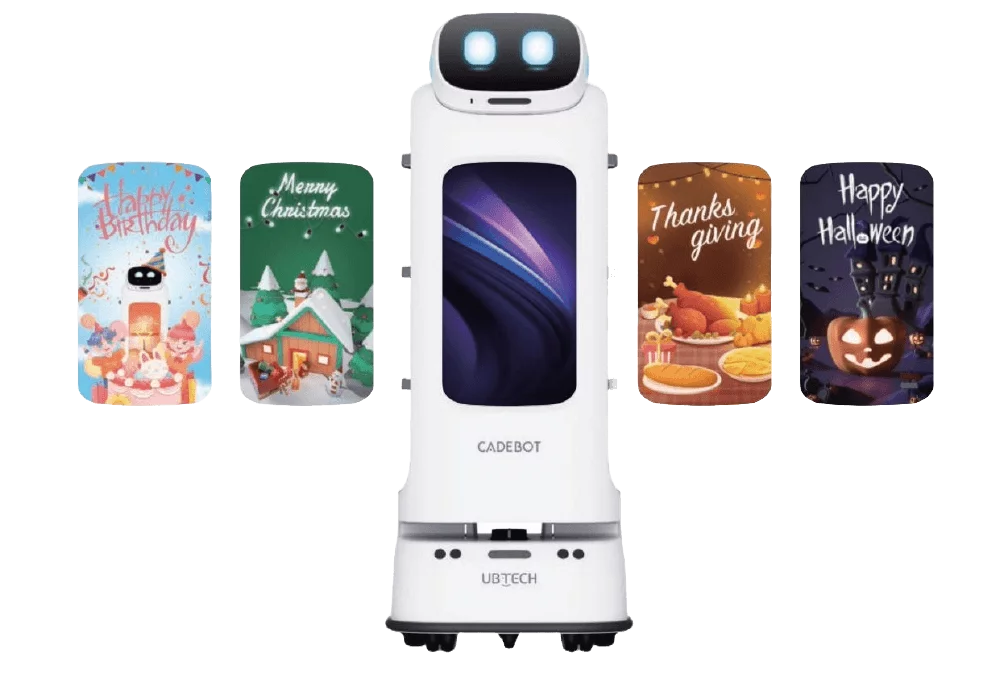

Dynamic Promotion: Displays high-impact images and videos on its large 21.5" screen while performing tasks.
Transport Hubs and Other Public Areas
Guidance: Can be programmed to guide visitors; supports multi-robot cooperation for seamless synchronized service.
Autonomous Delivery: Optimized for multi-point delivery, enhancing service efficiency.
Offices and Schools
Greeting/Interaction: Provides customized voice interaction and information services via its 6-microphone array.
Hospitals and Shopping Centers
Dynamic Promotion: Displays high-impact images and videos on its large 21.5" screen while performing tasks.
Transport Hubs and Other Public Areas
Guidance: Can be programmed to guide visitors; supports multi-robot cooperation for seamless synchronized service.
Navigation & Detection
The robot employs a fusion of sensory inputs for safe, centimeter-level movement in complex environments.
• Navigation System Based on U-SLAM Fusion which combines laser technology with visual AI.
• Obstacle Avoidance It uses a comprehensive system including LIDAR, RGBD cameras, and ultrasonic sensors for detection and avoidance.
• Stability The chassis features independent suspension and damped wheels, crucial for maintaining stability, especially when delivering liquids or delicate items.
• Processor Core processing is handled by a Qualcomm Snapdragon Processor.
• Multi-Robot Management Uses the CRMS management platform to synchronize maps and coordinate movements with multiple robots simultaneously.
• Navigation System Based on U-SLAM Fusion which combines laser technology with visual AI.
• Obstacle Avoidance It uses a comprehensive system including LIDAR, RGBD cameras, and ultrasonic sensors for detection and avoidance.
• Stability The chassis features independent suspension and damped wheels, crucial for maintaining stability, especially when delivering liquids or delicate items.
• Processor Core processing is handled by a Qualcomm Snapdragon Processor.
• Multi-Robot Management Uses the CRMS management platform to synchronize maps and coordinate movements with multiple robots simultaneously.
Technical Specifications
Dimensions (L×W×H) 551 x 484 x 1252 mm
Net Weight 55 kg
Advertising Screen 21.5" FHD (1920x1080, 16:9)
Interactive Screen 10.1" FHD (1200x1920) Touchscreen
Processor Qualcomm Snapdragon Processor
Load Capacity (Total) 40 kg
Trays 3 Trays / 4 Zones (10 kg per tray)
Tray Surface 38 x 42 cm
Battery Life (Work/Standby) 6 h / 12 h (20 Ah, LiFePO4 battery)
Charging Time 4 h (Automatic or Station)
Navigation Speed (Adjustable) 0.3–1.0 m/s
Navigation System U-SLAM Fusion (laser + visual AI), LIDAR, RGBD Cameras, Ultrasonic Sensors
Connectivity 4G, WiFi 2.4/5G, Lora
Net Weight 55 kg
Advertising Screen 21.5" FHD (1920x1080, 16:9)
Interactive Screen 10.1" FHD (1200x1920) Touchscreen
Processor Qualcomm Snapdragon Processor
Load Capacity (Total) 40 kg
Trays 3 Trays / 4 Zones (10 kg per tray)
Tray Surface 38 x 42 cm
Battery Life (Work/Standby) 6 h / 12 h (20 Ah, LiFePO4 battery)
Charging Time 4 h (Automatic or Station)
Navigation Speed (Adjustable) 0.3–1.0 m/s
Navigation System U-SLAM Fusion (laser + visual AI), LIDAR, RGBD Cameras, Ultrasonic Sensors
Connectivity 4G, WiFi 2.4/5G, Lora
