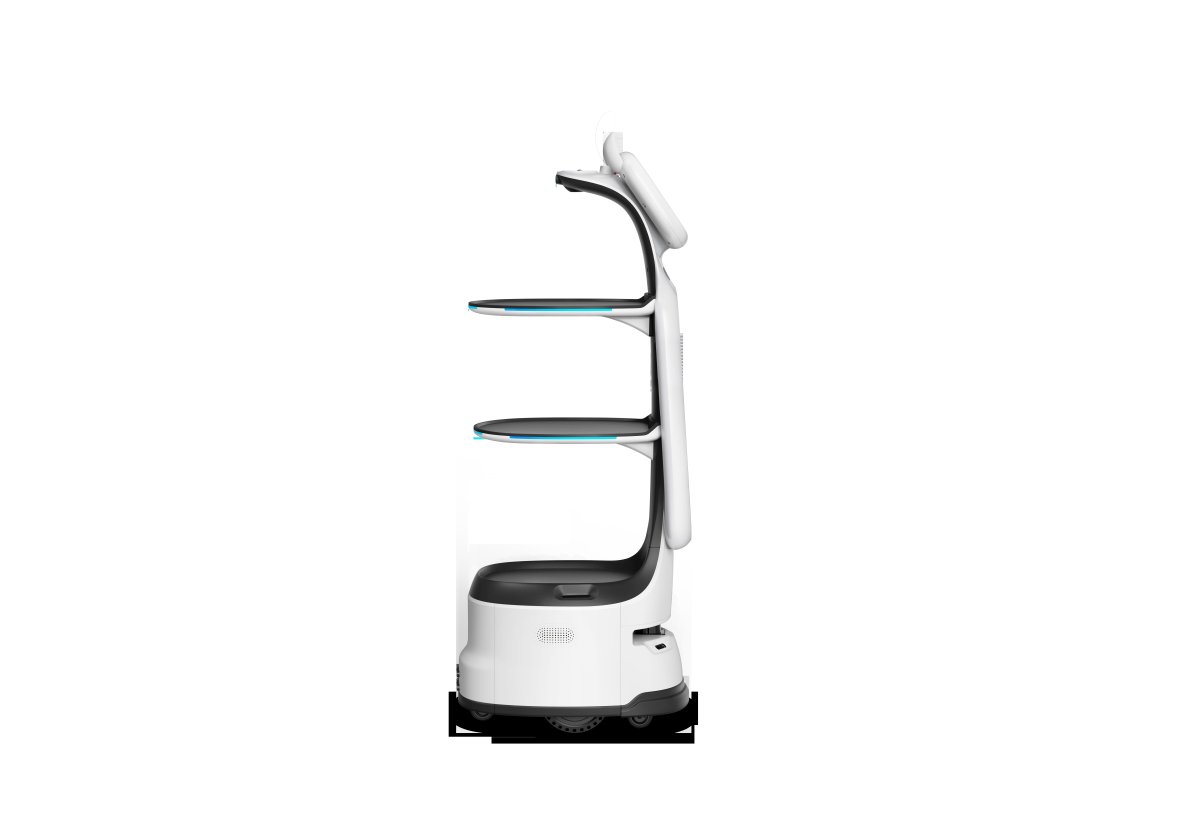

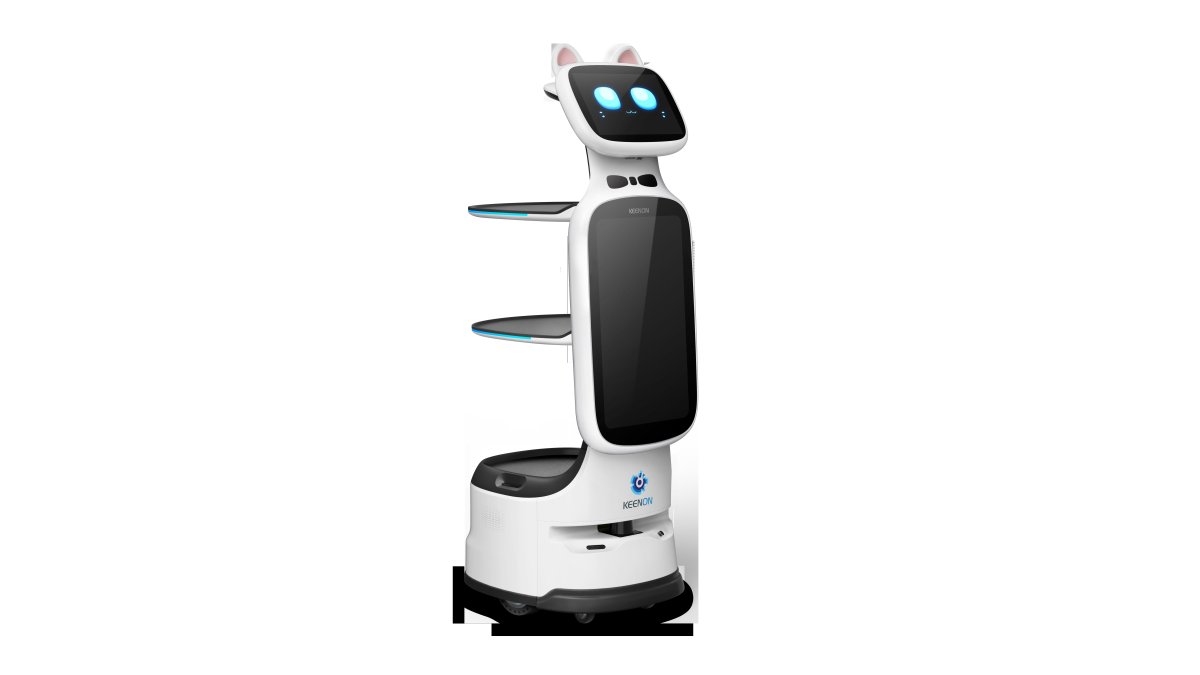

Keenon Dinerbot T11
Benefits
Agile Navigation: Designed for tight spaces with a minimum passage width of 55 cm.
Advanced 3D Detection: Uses multimodal 3D environment detection and SLAM for precise positioning.
Customizable Interaction: Features customizable facial expressions, voice, and design to match branding.
Efficient Service: Equipped with 3 trays, a 20 kg total payload, and a top speed of 1.2 m/s.
Advanced 3D Detection: Uses multimodal 3D environment detection and SLAM for precise positioning.
Customizable Interaction: Features customizable facial expressions, voice, and design to match branding.
Efficient Service: Equipped with 3 trays, a 20 kg total payload, and a top speed of 1.2 m/s.
Performances &Interactions
Number of Trays: 3
Interaction: Customizable facial expressions, voice, and design.
System: Android
Max Speed: 1.2 m/s
Max Incline: ≤ 5°
Interaction: Customizable facial expressions, voice, and design.
System: Android
Max Speed: 1.2 m/s
Max Incline: ≤ 5°
Applications
Restaurants: Ideal for table service in establishments with narrow aisles.
Hotels: Room service or delivery in common areas.
Hotels: Room service or delivery in common areas.
Retail: Can be used for small deliveries or as an interactive promotional tool.
Indoor Entertainment and more
Navigation & Detection
Navigation Technology: SLAM
Positioning System: Uses Encoder, Gyroscope (IMU), Lidar, image module, and UWB
Environment Detection: Multimodal 3D vision
Minimum Passage Width: 55 cm
Positioning System: Uses Encoder, Gyroscope (IMU), Lidar, image module, and UWB
Environment Detection: Multimodal 3D vision
Minimum Passage Width: 55 cm
Customizable screens and ears, many languages
Technical Specifications
Body dimensions (length × width × height) 463 × 384 × 1123 mm (36.42" x 24.41" x 50.47")
Shelf dimensions (length × width × height) 383 × 342 × 220 mm (upper and middle shelves) ；
383 × 342 × 285 mm (lower shelf)
Body weight 38 kg
Maximum load capacity 20 kg (5 kg for each upper and middle shelf, 10 kg for the lower shelf)
Travel speed 0.1 - 1.0 m/s (adjustable)
Minimum passage width 49 cm
Maximum tilt angle 5°
Battery specifications DC 25.9 V, 20.8 Ah
Shelf dimensions (length × width × height) 383 × 342 × 220 mm (upper and middle shelves) ；
383 × 342 × 285 mm (lower shelf)
Body weight 38 kg
Maximum load capacity 20 kg (5 kg for each upper and middle shelf, 10 kg for the lower shelf)
Travel speed 0.1 - 1.0 m/s (adjustable)
Minimum passage width 49 cm
Maximum tilt angle 5°
Battery specifications DC 25.9 V, 20.8 Ah
